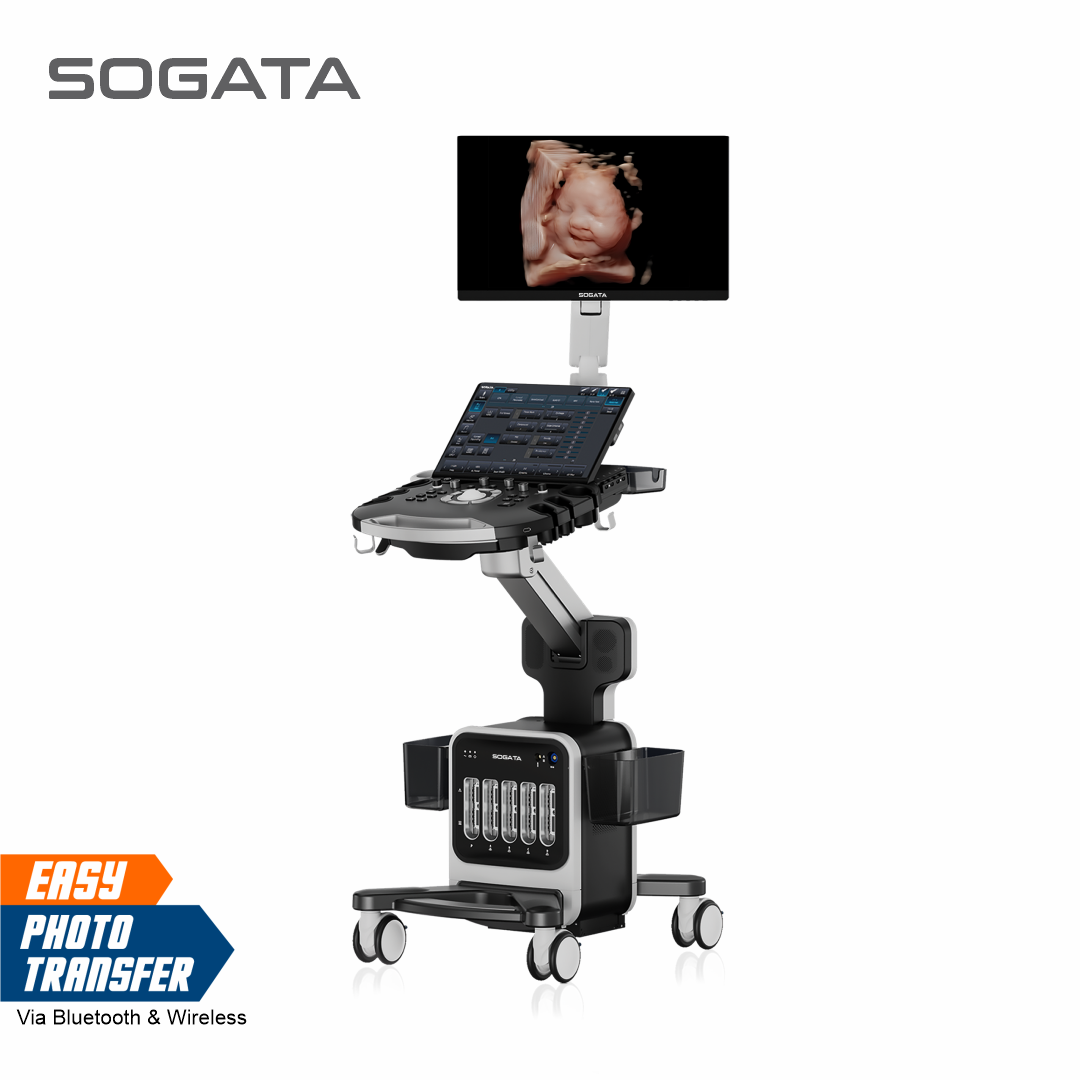

SG70 CD 4D LIVE HD

Rotatable : -90°~90°, Foldable : 0°~90°
Lift Size Adjusment 30 cm

4D Package + Virtual HD
500GB SSD

Imaging Modes: B , 2B , 4B , B/M , B/BC,
CFM,PW, Power Doppler / Directional PD

Instant Triplex, Duplex, Quadplex,
Trapezoidal, Intelligent Doppler

Super Image Module: FHI, Multiple
Compound Imaging, SRA ( Speckle
Reduction Algorithm ), AIO

Q-Image, Q-flow, Q-beam, X contrast
(Intelligent Image Optimization)

Measurement & Calculation Software Packages:
General, OBGYN, Cardiac

Color Doppler Package:
Elastography, Super Needle
2D Steer, IMT, DICOM 3.0

Cardiac Package (Optional) :
ECG License, CW, Free Steering
M Mode
Color M Mode, TDI, Stress Echo

Image Quality

Fetal Face

Sono Crystal

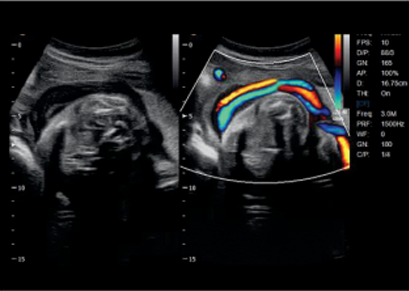

Umbilical Cord, 2B Mode

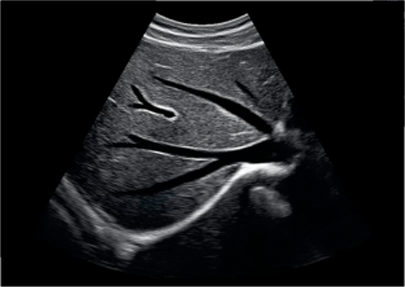

Liver B Mode

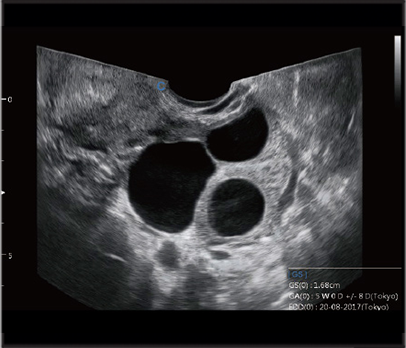

Ultrawide TVS Probe ≥ 210°

Probe Option :

Volume

V2-6 (3.0MHz-6.8MHz)

Convex

C2-6 (3.0MHz-6.8MHz)

Transvaginal

E4-10 (4.8MHz-12.0MHz)

Linear

L6-18 (8.4MHz-18.0MHz)
(Optional)

Phassed Array Adult

S1-5P (1.8MHz-5.3MHz)
(Optional)

Phassed Array Pediatric

S2-8 (2.4MHz-9.6MHz)
(Optional)

Pencils

CW-2 (2.0MHz)
(Optional)

TransRectal

L4-10R (6.0MHz-15.0MHz)
(Optional)

MITI ≤1

World standards of safety ultrasound examination recommend to do Mechanical Index (MI) and Thermal Index (TI)
must be ≤1.

The energy released by ultrasound equipment will cause cavitation
effects or the formation of micro
air bubbles that can damage cells,
especially during the embryological
period.

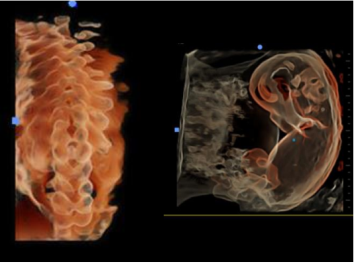

Sono Crystal

Provide context and surface information.
Allow an accurate understanding of
patient anatomy. Easily differentiates between soft tissue and structure.

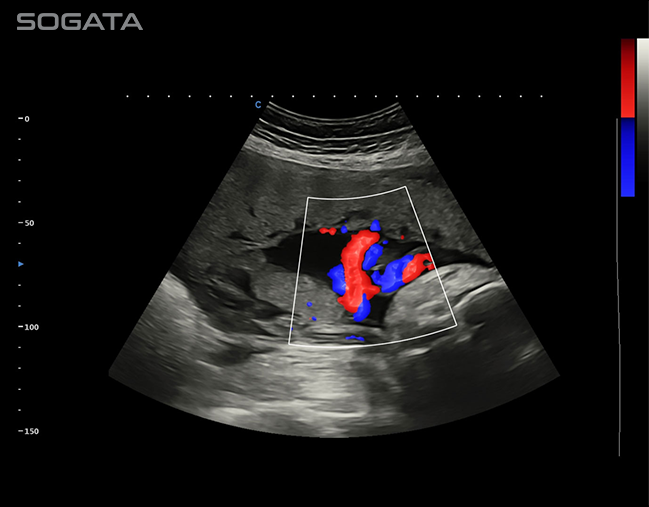

Volume Flow

A three-dimensional technology which can provide the real-time visualization of hemodynamics blood flow with
a density appearance.

Sono Follicle

Automated tool for detecting follicles, showing the number of follicles, the size
of each follicle to provide useful indicators Minimize the dependency on the
sonographer

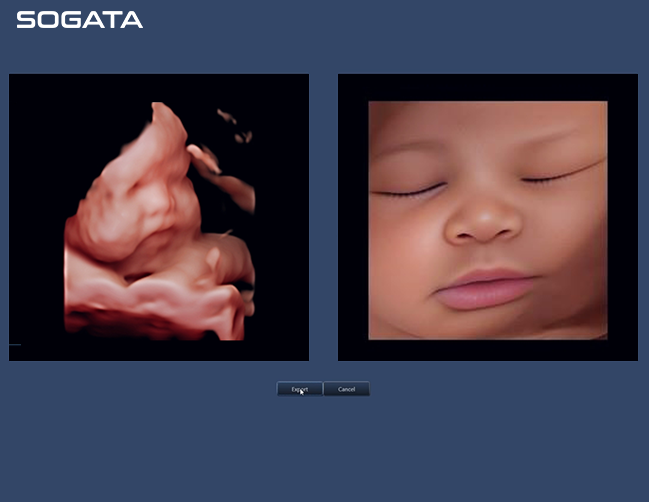

Virtual Face (Optional)

Combines the efficient image generation of the Stable Diffusion model, high-frequency
information enhancement from CRNet, and latent space exploration via Variational
Autoencoders (VAE).
