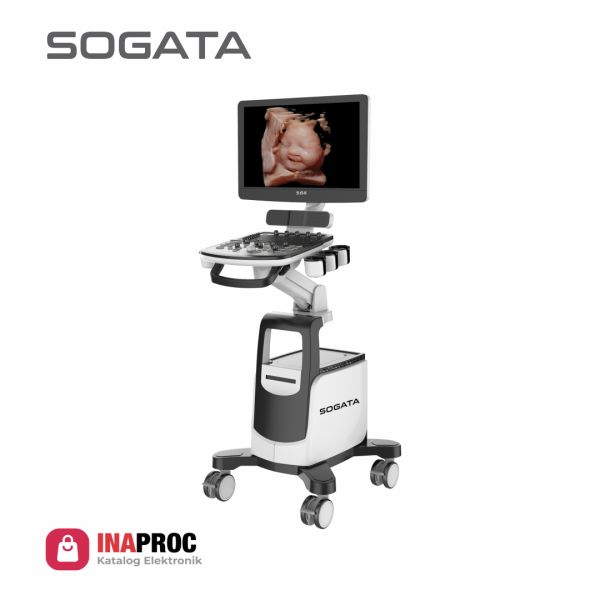

SG8 CD 4D Live (HD) 3 Probes

Spec :

Rotatable : -90°~90°,
Foldable : 0°~90°

4D Package + Virtual HD
500GB Hard Disk, DVD-R/W

Imaging Modes: B , 2B , 4B , B/M,
B/BC, CFM,PW, Power Doppler /
Directional PD

Instant Triplex, Duplex, Quadplex,
Trapezoidal,
Sony BW, Printer Color, stabilizer, UPS

Super Image Module: FHI, Multiple
Compound Imaging, SRA ( Speckle
Reduction Algorithm ), AIO

Q-Image, Q-flow, Q-beam, X contrast
(Intelligent Image Optimization)

Measurement & Calculation Software Packages:
General, OBGYN, Cardiac

Color Doppler Package:
Elastography, Curved Panoramic, Super Needle 2D Steer, IMT, DICOM 3.0

Image Quality SG8 CD 4D Live HD

MV Regurgitation, PISA

Cardiac Two Chambers

Aorta Valve, PW Mode

Cardiac Simpson

Cardiac, BBC

Probe SG8 CD 4D Live HD

Convex

D3C60L (2.0MHz-6.8MHz)

Linear

D12L40L (7.0MHz-18.0MHz)

Transvaginal

D7C10L (4.0MHz-15.0MHz)
(Optional)

MITI ≤1

World standards of safety ultrasound examination recommend to do Mechanical Index (MI) and Thermal Index (TI)
must be ≤1.

The energy released by ultrasound equipment will cause cavitation
effects or the formation of micro
air bubbles that can damage cells,
especially during the embryological
period.

Virtual HD

The latest innovation in real-time 4D with powerful imaging engine Greatly streng
then the bond between mother and fetus with moveable virtual light source

Quantative Elastography

Display the elasticity of different tissues in different color. Provide more clinical information, especially for soft tissue.

Strain ratio measurement quantitatively
gives the ratio between the average strain
of the selected region and of the nearby normal tissue region.

Quadplex

Quadplex technology enables automatic,
real-time calculation
of fetal heart rate & blood vessel flow.

Featuring 2D imaging, Color Flow,
realtime PW, & automatic
measurement.

Smart HIP

Use a graph for hip orthotics diagnosis, help the doctor with easier and more accurate diagnosis during the pediatric hip
scanning.

Different angle indicates different level of hip deformity, which is easier and more obvious to see with the aid of the graph. (I, II, D, IIIa, IIIb).
