SG5 Premium Cardiac Package

SG5 Premium Cardiac Package
SG5 Premium Cardiac Package
SG5 Premium Cardiac Package
SG5 Premium Cardiac Package
SG5 Premium Cardiac Package

Feature :



19,5” HD LED Monitor Rotatable ± 90°
Adaptive control panel Rotatable (±45°)
ECG Connector + 1 Parking Place



Hero Kit
Shortcut Key Function
Automatic PW Trace



Chroma B, M, PW
MI/TI ≤1
TDI, CW



Color M Mode
Quadplex
Instant Triplex

Phased Array D3P64L

Kategori:

Spec

3 Transducers Connectors +1 Parking Place
DVD-R/W, 2D Steer
Imaging Modes: B , 2B , 4B , B/M,



B/BC, CFM,PW, Power Doppler /
Directional PD
Duplex,Trapezoidal



Super Image Module: FHI, Multiple
Compound Imaging, SRA ( Speckle
Reduction Algorithm )



Q-Image, Q-flow, Q-beam, X contrast
(Intelligent Image Optimization)



Measurement & Calculation
Software Packages:
General, OBGYN, Cardiac



Dicom 3.0, Frozen Panoramic View
ECG Software, CW, Colour M, TDI



Image Quality SG5 Premium Cardiac Package

Probe Option SG5 Premium Cardiac Package

Transvaginal
Transvaginal
D7C12L (4.0MHz-15.0MHz)
(Optional)
Linear
Linear
D7L40L (7.0MHz-18.0MHz)
Trans Rectal
Trans Rectal
D740L-Rec (4.0MHz-15.0MHz)
(Optional)
Phased Array
Phased Array
D3P64L (1.5MHz-5.3MHz)
(Optional)
Convex
Convex
D3C60L (2.0MHz-6.8MHz)





MITI ≤1
MITI ≤1
World standards of safety ultrasound examination recommend to do Mechanical Index (MI) and Thermal Index (TI)
must be ≤1.

The energy released by ultrasound equipment will cause cavitation
effects or the formation of micro
air bubbles that can damage cells,
especially during the embryological
period.

Auto IMT
Auto IMT
Automatically traces the intima, and measures the thickness of the intima.

This allows you to measure the intima
faster, more easily and more accurately.

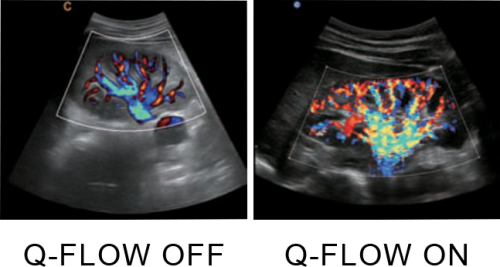

Q Flow
Q Flow
This adaptive color detection technology
can automatically adjust the assessment of color signal and noise according to different tissues.

As a result, color sensitivity of low-velocity flow is significantly enhanced.
FHI
FHI
Imaging technology that uses multiple transmission and receiving methods
based on the patient’s size and weight.

This allows the SG90 Premium to maintain image resulotion when imaging large patients.

Better than tradional THI and phases harmonic which compromise the
penetration.

FHI technology greatly improves diagnoctic abilities and clinical confidance in larger, difficult-to-image patients
QBeam
QBeam
Compared to the traditional dual-beam former on most ultrasound machines, the SG90 uses quad-beam technology for ultrasound signal receiving

Double the Volume of signals receiving from tradional methods, increasing image
resolution and generating more accorate image.

Produces higher frame rates, ensuring better diagnostic confidence and efficiency, especially for moving organs
