SG9P Cardiac Package

Spec

Rotatable : -90°~90°,
Foldable : 0°~90°
500G Hard Disk, DVD-R/W

Imaging Modes: B , 2B , 4B , B/M,
B/BC, CFM,PW, Power Doppler /
Directional PD

Instant Triplex, Duplex, Quadplex,
Trapezoidal, Intelligent Doppler

Super Image Module: FHI, Multiple
Compound Imaging, SRA ( Speckle
Reduction Algorithm ), AIO

Q-Image, Q-flow, Q-beam, X contrast
(Intelligent Image Optimization)

Measurement & Calculation
Software Packages:
General, OBGYN, Cardiac

Cardiac Package :

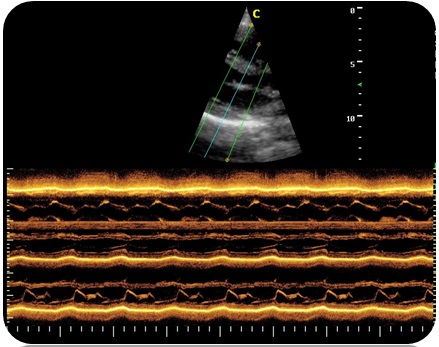

ECG License, CW, Free Steering M Mode

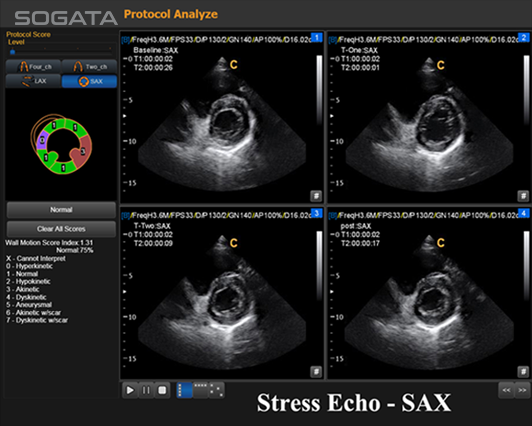

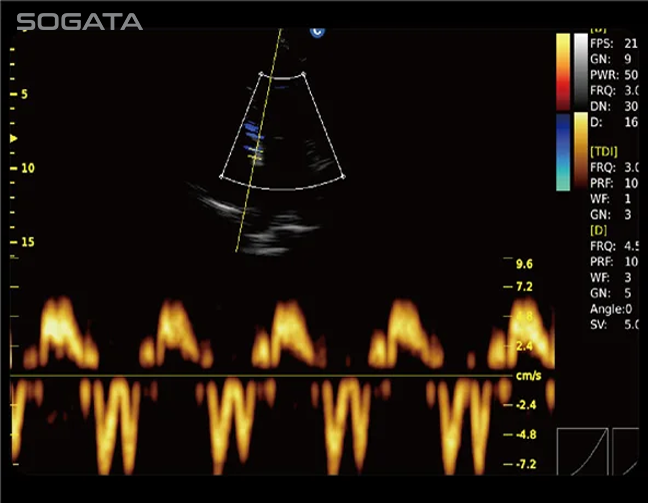

Color M Mode, TDI, Stress Echo

Color Doppler Package:

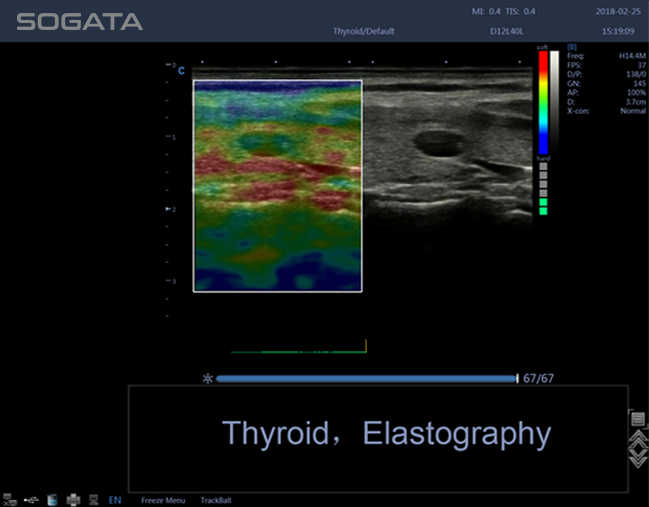

Elastography, Curved Panoramic, Super Needle 2D Steer, IMT, DICOM 3.0

Image Quality SG9P Cardiac Package

MV Regurgitation, PISA

Cardiac Two Chambers

Aorta Valve, PW Mode

Cardiac Simpson

Cardiac, BBC

Probe Option SG9P Cardiac Package

Volume

V4C40L (2.0MHz-6.8MHz)
(Optional)

Convex

D3C60L (2.0MHz-6.8MHz)
(Optional)

Transvaginal

D7C10L (4.0MHz-15.0MHz)
(Optional)

Linear

D7L40L (4.0MHz-15.0MHz)

Phased Array Adults

D3P64L (1.5MHz-5.3MHz)

Phased Array Pediatric

D6P64L (2.0MHz-8.0MHz)
(Optional)

Pencil

D2D16L (2.0MHz)
(Optional)

TransRectal

D7L40L-REC (4.0MHz-15.0MHz)
(Optional)
