SG70 Color Doppler

Spec :

Rotatable : -90°~90°, Foldable : 0°~90°
Lift Size Adjusment 30 cm

4D Package (Optional)
Virtual HD (Optional)

Imaging Modes: B , 2B , 4B , B/M , B/BC,
CFM,PW, Power Doppler / Directional PD

Instant Triplex, Duplex, Quadplex,
Trapezoidal, Intelligent Doppler
500GB SSD

Super Image Module: FHI, Multiple
Compound Imaging, SRA ( Speckle
Reduction Algorithm ), AIO

Q-Image, Q-flow, Q-beam, X contrast

(Intelligent Image Optimization)

Measurement & Calculation Software Packages:
General, OBGYN, Cardiac

Color Doppler Package:
Elastography, Super Needle
2D Steer, IMT, DICOM 3.0

Cardiac Package (Optional) :
ECG License, CW, Free Steering
M Mode
Color M Mode, TDI, Stress Echo

Image Quality :

Abdominal Aorta

Finger Vessel Flow

Umbilical Cord, 2B Mode

Carotid PW Mode

Strain Elastography

Probe Option :

Volume

V2-6 (3.0MHz-6.8MHz)
(Optional)

Convex

C2-6 (3.0MHz-6.8MHz)

Transvaginal

E4-10 (4.8MHz-12.0MHz)
(Optional)

Linear

L6-18 (8.4MHz-18.0MHz)

Phassed Array Adult

S1-5P (1.8MHz-5.3MHz)
(Optional)

Phassed Array Pediatric

S2-8 (2.4MHz-9.6MHz)
(Optional)

Pencils

CW-2 (2.0MHz)
(Optional)

TransRectal

L4-10R (6.0MHz-15.0MHz)
(Optional)

MITI ≤1

World standards of safety ultrasound examination recommend to do Mechanical Index (MI) and Thermal Index (TI)
must be ≤1.

The energy released by ultrasound equipment will cause cavitation
effects or the formation of micro
air bubbles that can damage cells,
especially during the embryological
period.

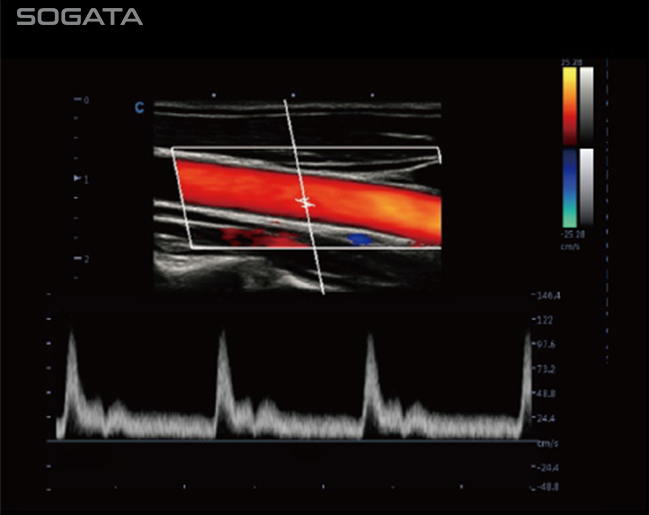

Intelligent Doppler

Automatically adjust the ROI direction,
PFR in color mode, doppler gate in
PW mode.

SWE

SWE is applied to diffuse lesions, providing pressure values to determine lesions
such as fatty liver, liver fibrosis, and
cirrhosis The detection depth can reach
6 centimeters

Sono PW

The sample gate can be extended to 4
during PW mode. It can switch and
active each sample gate to realize
multi-point spectrum measurement
in the same cardiac cycle at the same scanning plane

RT IMT

Simultaneously measure the thickness of the anterior and posterior walls of blood vessels when scanning.
