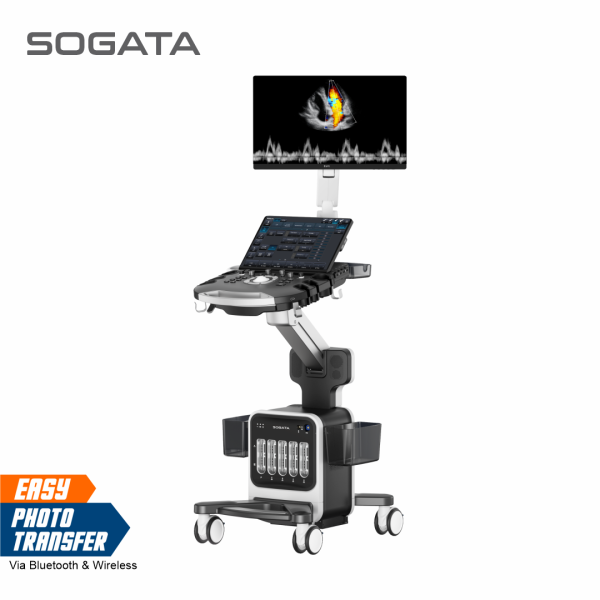

SG70 Cardiac Package

Spec :

Rotatable : -90°~90°, Foldable : 0°~90°
Lift Size Adjusment 30 cm

500GB SSD

Imaging Modes: B , 2B , 4B , B/M , B/BC,
CFM,PW, Power Doppler / Directional PD

Instant Triplex, Duplex, Quadplex,
Trapezoidal, Intelligent Doppler

Super Image Module: FHI, Multiple
Compound Imaging, SRA ( Speckle
Reduction Algorithm ), AIO

Q-Image, Q-flow, Q-beam, X contrast
(Intelligent Image Optimization)

Measurement & Calculation Software Packages:
General, OBGYN, Cardiac

Color Doppler Package:
Elastography, Super Needle
2D Steer, IMT, DICOM 3.0

Cardiac Package :
ECG License, CW, Free Steering
M Mode
Color M Mode, TDI, Stress Echo

Image Quality :

Aorta Valve, PW Mode

Cardiac Simpson

Cardiac, BBC

MV Regurgitation, PISA

Cardiac Two Chambers

Probe Option :

Volume

V2-6 (3.0MHz-6.8MHz)
(Optional)

Convex

C2-6 (3.0MHz-6.8MHz)
(Optional)

Transvaginal

E4-10 (4.8MHz-12.0MHz)
(Optional)

Linear

L6-18 (8.4MHz-18.0MHz)

Phassed Array Adult

S1-5P (1.8MHz-5.3MHz)

Phassed Array Pediatric

S2-8 (2.4MHz-9.6MHz)
(Optional)

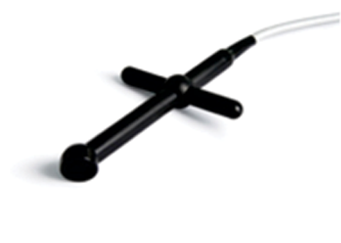

Pencils

CW-2 (2.0MHz)
(Optional)

TransRectal

L4-10R (6.0MHz-15.0MHz)
(Optional)

MITI ≤1

World standards of safety ultrasound examination recommend to do Mechanical Index (MI) and Thermal Index (TI)
must be ≤1.

The energy released by ultrasound equipment will cause cavitation
effects or the formation of micro
air bubbles that can damage cells,
especially during the embryological
period.

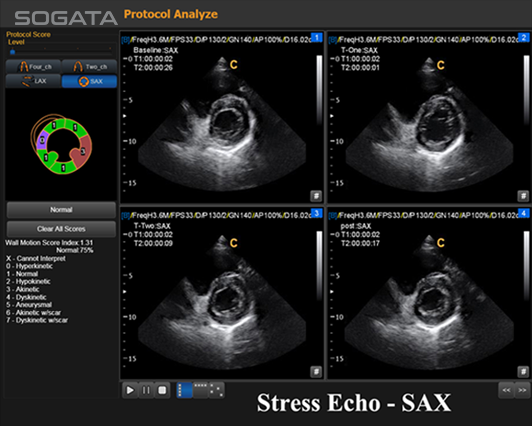

Stress Echo

Help to confirm or rule out the presence of coronary artery disease.

Patients with coronary artery blockages
may have minimal or no symptoms during rest.

Symptoms and sign of heart disease
may be unmasked by exposing the herart
to the stress of exercise.

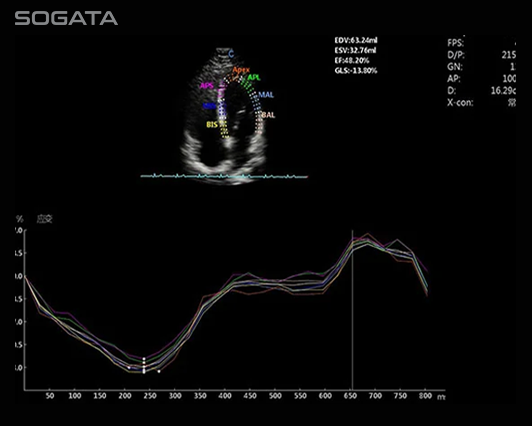

Strain And Strain Rate

A new non-invasive method for assessment
of myocardial function.

Ability to differentiate between active and passive movement of myocardial segments, to quantify intraventricular dyssynchrony.

To evaluate components of myocardial function.

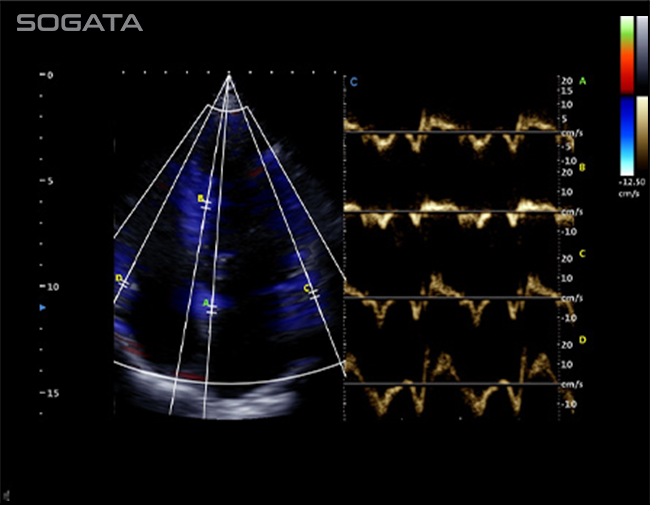

TDI Sono PW

New technology tracks myocardial tissue movement, aiding cardiac function analysis. Assess diastolic function, detect
pathological changes.

The PW sample gate can be up to 4.

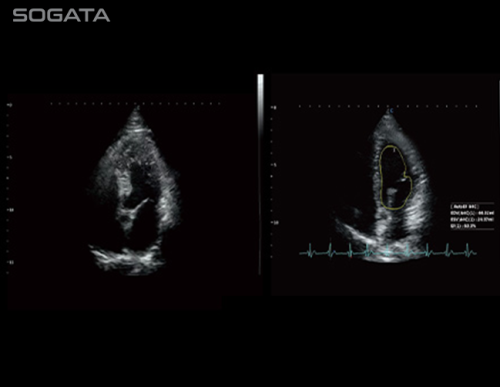

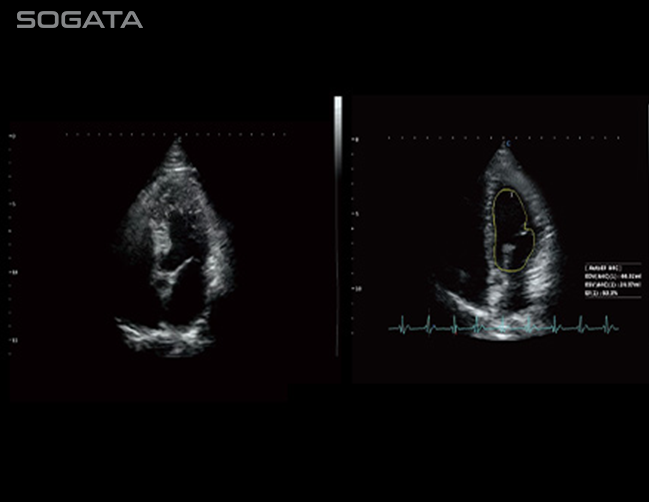

Auto EF

Automatically recognize and envelope the endocardium accurately, and provide cardiac function measurement values (EDV,ESV,EF) synchronously.

Greatly improve work efficiency.
