SG90 Premium Cardiac Package

Spec

2 Transducer Connectors
500GB Hard Disk, 4 USB Port
Imaging Modes: B , 2B , 4B ,

B/M , B/BC, CFM,PW,
Power Doppler / Directional PD
Instant Triplex, Duplex, Quadplex,

Trapezoidal, Full Screen Mode
Automatic PW Trace

Super Image Module: FHI, Multiple
Compound Imaging, SRA ( Speckle
Reduction Algorithm ),

Q-Image, Q-flow, Q-beam, X contrast
(Intelligent Image Optimization)

Measurement & Calculation Software Packages:
General, OBGYN, Cardiac

Cardiac Package:
ECG License, CW, Free Steering M Mode
Color M Mode, TDI, Stress Echo

Color Doppler Package:
Elastography, Curved Panoramic
Imaging, Super Needle 2D Steer,
IMT, DICOM 3.0

Image Quality SG90 Premium Cardiac Package

Cardiac, BBC

Cardiac Simpson

Aorta Valve, PW Mode

Cardiac Two Chambers

MV Regurgitation, PISA

Probe Option SG90 Premium Cardiac Package

Volume

V4-EV (2.0MHz-6.8MHz)
(Optional)

Convex

C3-E (2.0MHz-6.8MHz)
(Optional)

Transvaginal

V6-E (4.0MHz-12.0MHz)
(Optional)

TransRectal

L7R-E (4.0MHz-15.0MHz)
(Optional)

Linear

L12-E (7.0MHz-18.0MHz)

Phassed Array Adult

P3-E (1.5MHz-5.3MHz)

Phassed Array Pediatric

P6-E (2.0MHz-8.0MHz)
(Optional)

MITI ≤1

World standards of safety ultrasound examination recommend to do Mechanical Index (MI) and Thermal Index (TI)
must be ≤1.

The energy released by ultrasound equipment will cause cavitation
effects or the formation of micro
air bubbles that can damage cells,
especially during the embryological
period.

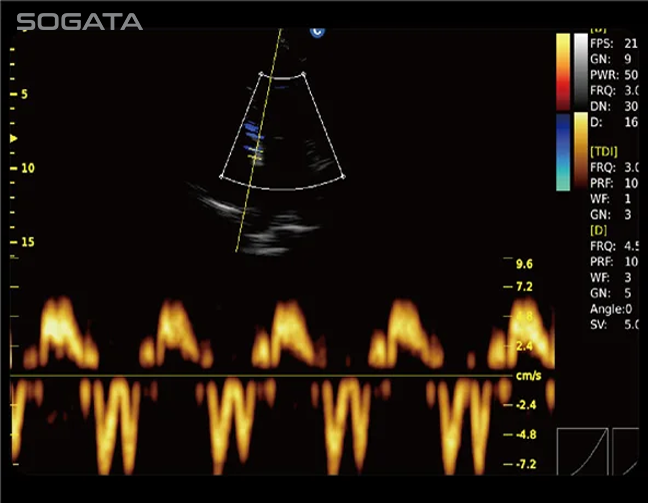

Tissue Doppler Imaging (TDI)

Tissue Doppler imaging is a novel echocardiography technique that
directly measures myocardial velocity.

Systolic TD measurements assess left and right ventricular myocardial contractile function. Diastolic TD values reflect myocardial relaxation.

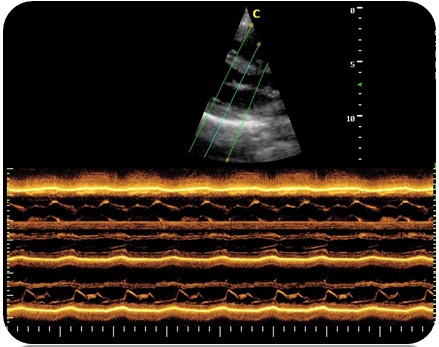

Free steering M mode

Tissue Doppler imaging is a novel echocardiography technique that
directly measures myocardial velocity.

Systolic TD measurements assess left and right ventricular myocardial contractile function. Diastolic TD values reflect myocardial relaxation.

Q Image

These innovative algorithrms have strengthened the image enhancement
results significantly

Advence chipset is used to ensure
fast frame rate

FHI

Imaging technology that uses multiple transmission and receiving methods
based on the patient’s size and weight.

This allows the SG90 Premium to maintain image resulotion when imaging large patients.

Better than tradional THI and phases harmonic which compromise the
penetration.

FHI technology greatly improves diagnoctic abilities and clinical confidance in larger, difficult-to-image patients

QBeam

Compared to the traditional dual-beam former on most ultrasound machines, the SG90 uses quad-beam technology for ultrasound signal receiving

Double the Volume of signals receiving from tradional methods, increasing image
resolution and generating more accorate image.

Produces higher frame rates, ensuring better diagnostic confidence and efficiency, especially for moving organs
