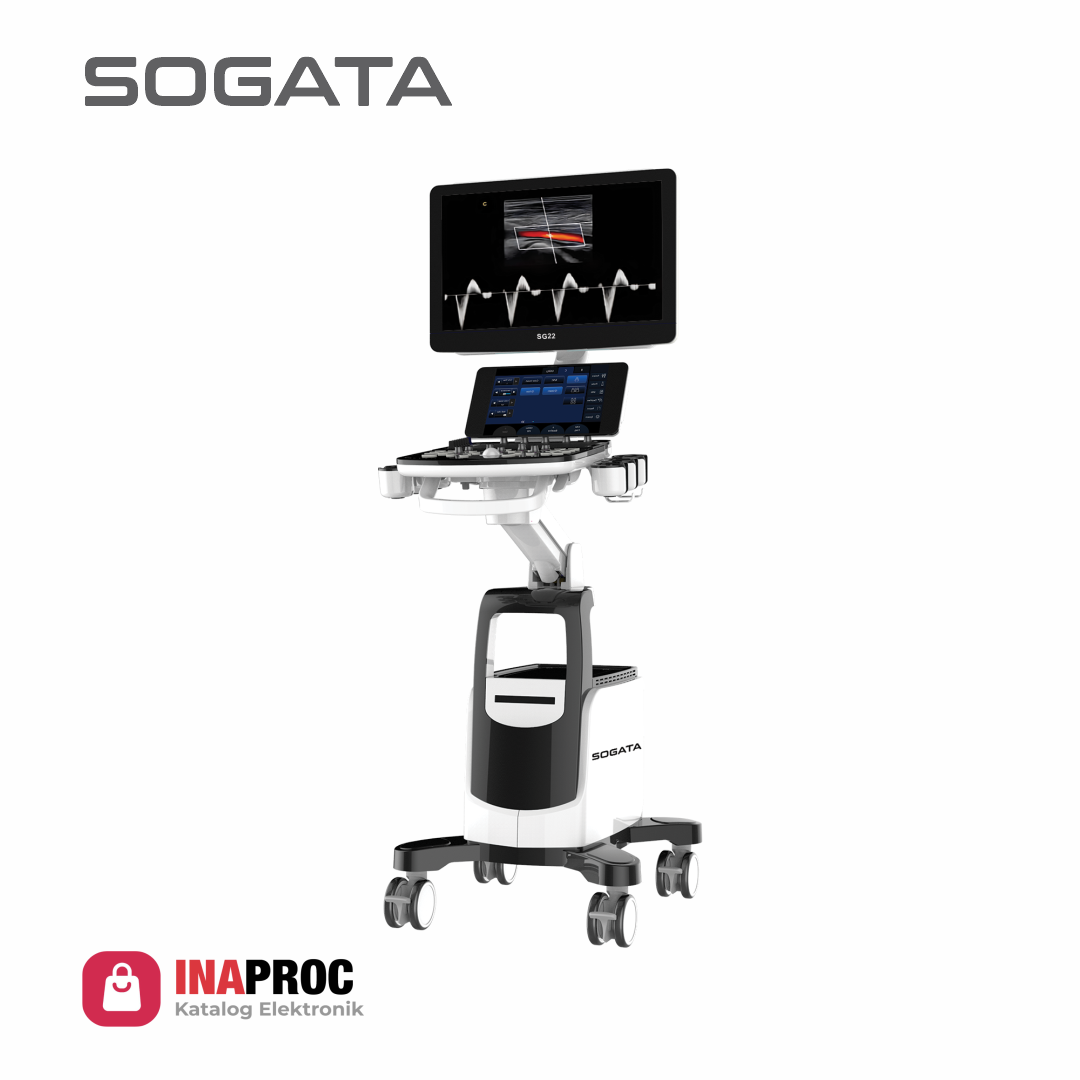

SG22 Color Doppler 2 Probes

Spesifikasi :

Rotatable : -90°~90°, Foldable : 0°~90°
Rotatable Keyboard: -45°~45°
4D Package + Virtual HD

500G Hard Disk, DVD-R/W
Imaging Modes: B , 2B , 4B , B/M , B/BC,
CFM,PW, Power Doppler / Directional PD

Instant Triplex, Duplex, Quadplex,
Trapezoidal, Intelligent Doppler
Sony BW, Printer Color, Stabilizer, UPS

Super Image Module: FHI, Multiple
Compound Imaging, SRA ( Speckle
Reduction Algorithm ), AIO

Q-Image, Q-flow, Q-beam, X contrast
(Intelligent Image Optimization)

Measurement & Calculation Software Packages:
General, OBGYN, Cardiac

Color Doppler Package:
Elastography, Super Needle 2D Steer, IMT, DICOM 3.0

Cardiac Package (Optional) :
ECG License, CW, Free Steering M Mode
Color M Mode, TDI, Stress Echo

Image Quality SG22

Liver C Mode

Kidney C Mode

Thyroid, CPA Model

Umbilical Cord, 2B Mode

Carotid PW Mode

Probe

Convex

D3C60L (2.0MHz-6.8MHz)

Linear

D12L40L (7.0MHz-18.0MHz)

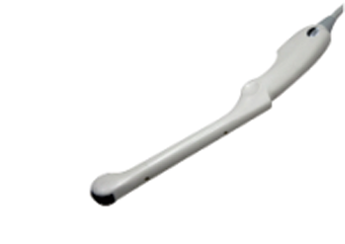

Transvaginal

D7C10L (4.0MHz-15.0MHz)
(Optional)

MITI ≤1

World standards of safety ultrasound examination recommend to do Mechanical Index (MI) and Thermal Index (TI)
must be ≤1.

The energy released by ultrasound equipment will cause cavitation
effects or the formation of micro
air bubbles that can damage cells,
especially during the embryological
period.

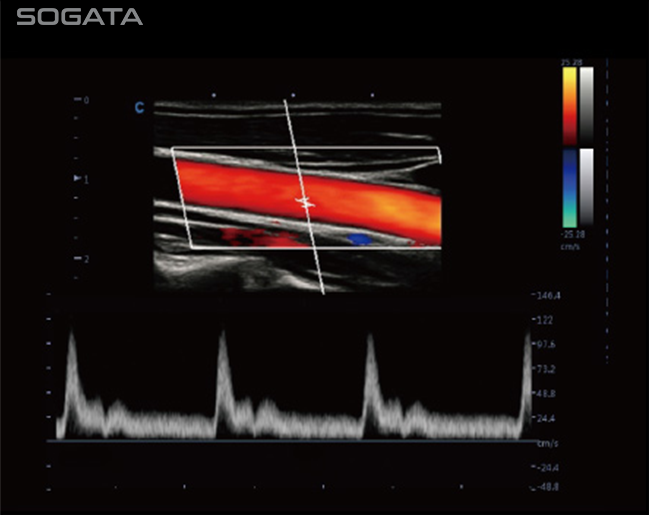

Intelligent Doppler

Automatically adjust the ROI direction,
PFR in color mode, doppler gate in
PW mode.

Quantative Elastography

Display the elasticity of different tissues in different color. Provide more clinical information, especially for soft tissue.

Strain ratio measurement quantitatively
gives the ratio between the average strain
of the selected region and of the nearby normal tissue region.

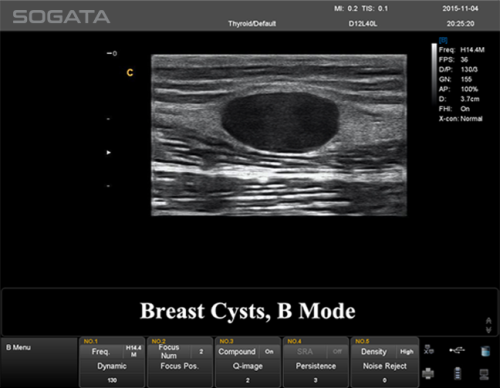

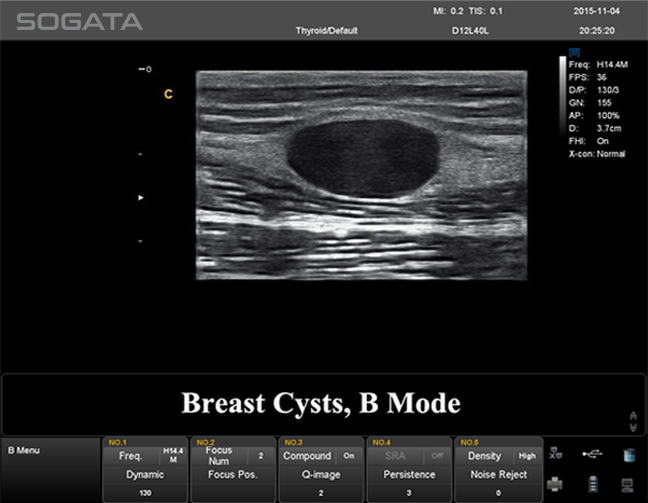

Auto Breast Detection

Automatically detect breast lesion
Provide the size
Efficiant for the diagnosis

Smart HIP

Use a graph for hip orthotics diagnosis, help the doctor with easier and more accurate diagnosis during the pediatric hip
scanning.

Different angle indicates different level of hip deformity, which is easier and more obvious to see with the aid of the graph. (I, II, D, IIIa, IIIb).
